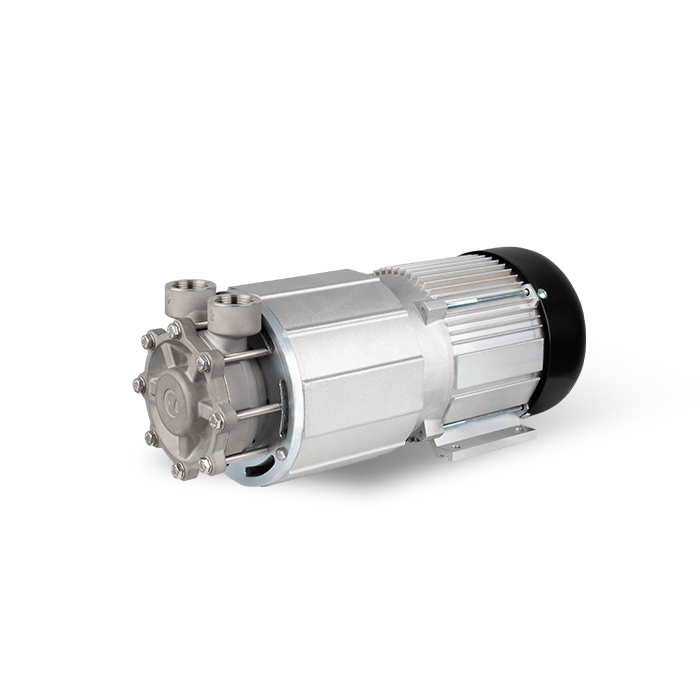

Streamlined Magnet Coupling Motor

Stabilization of tooling molds

Machine and system cooling as well as for production workflow

Semiconductor sector cooling

Compatible for gas component transportation

Pronounced performance curve

Elevated pressures in a streamlined form factor

Sealed design and no maintenance required due to magnetic link

Capability for reverse functioning

Works in tandem with a frequency inverter, Speed variability from 1000 to 4000 RPM

Operational efficiency surpasses the IE4 benchmark (Note： IE metrics aren't typically assigned to synchronous motors)

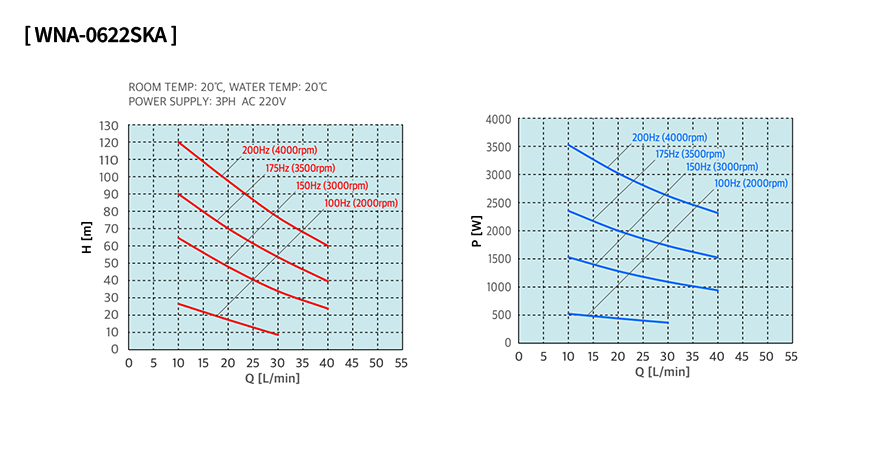

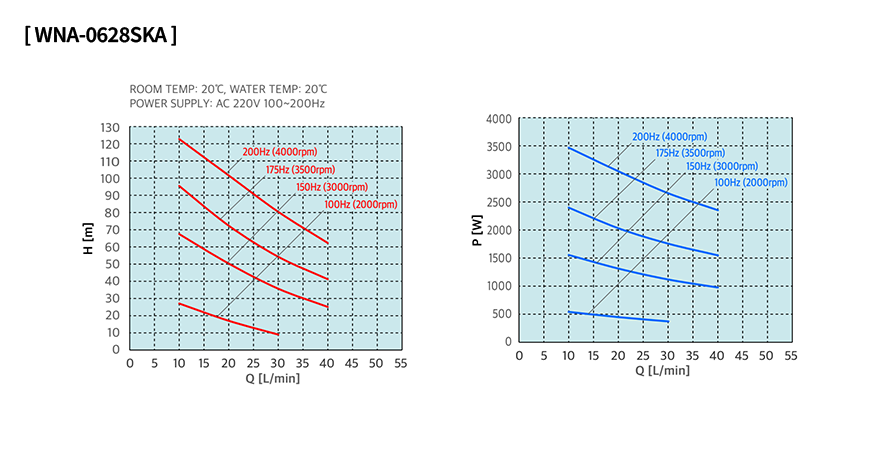

The performance curves relate to water distribution at a consistent 20°C temperature during the standard operating speed.

Estimated variance for both total pressure and volume stands at ± 10%; operational tolerance extends up to +10%.

Modifications in pump medium attributes will result in performance curve alterations.
